- CRYOGENIC TANK & PRESSURE VESSEL

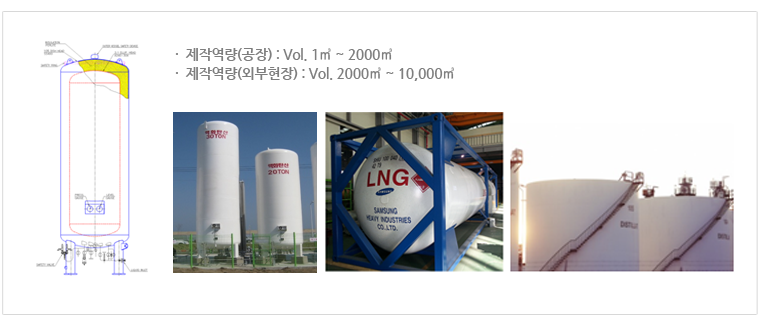

CRYOGENIC & PRESSURE VESSEL | Cryogenic Storage Tank |
|---|
| Storage Tank - Vacuum , non-vacuum LR Tank - Low, middle, high pressure Tank |
| Spherical Tank |
| Cryogenic Tank Lorry & Trailer |
| ISO Tank Container |
| Pressure Vessel | |
|---|---|
| MS Adsorber | Chiller |
| PSA/TSA | Reactor |
| Buffer Tank | |
| Gas holder | |
| Drain Vessel | |
| Double Wall | Single Wall | |
|---|---|---|
| Picture |  |
 |
| Capacity | 900m3 | 1,085m3 |
| D/P | 9barg | 5barg |
| Insulation | Vacuum + Perlite (E-Grade Cover) | Poly Urethane Form (SUS 0.2T Cover) |
| Diameter | 7,000mm | 10,800mm |
| Weight | 380ton | 275ton |
| Insulation Thickness | 400mm | 440mm |
| BOR (Boil off rate) | 0.08% (Vacuum Rate 0.05torr) | 0.32% |
| Holding Time | 118 days | 30 days |
| Nozzle Connection | Top / Side | Top (Liquid Dome) |
| Fabrication Time | 8 Month | 7 Month |
